Disk Imaging as a Safety Net for Damaged Drives
When a disk starts clicking, throwing I/O errors, or reporting bad sectors, every extra read increases the risk of failure.
In that moment, copying individual files often does more harm than good.
Disk imaging offers an alternative.
You capture a complete, block-level copy of the drive once, then run analysis or recovery on the image instead of the failing hardware.

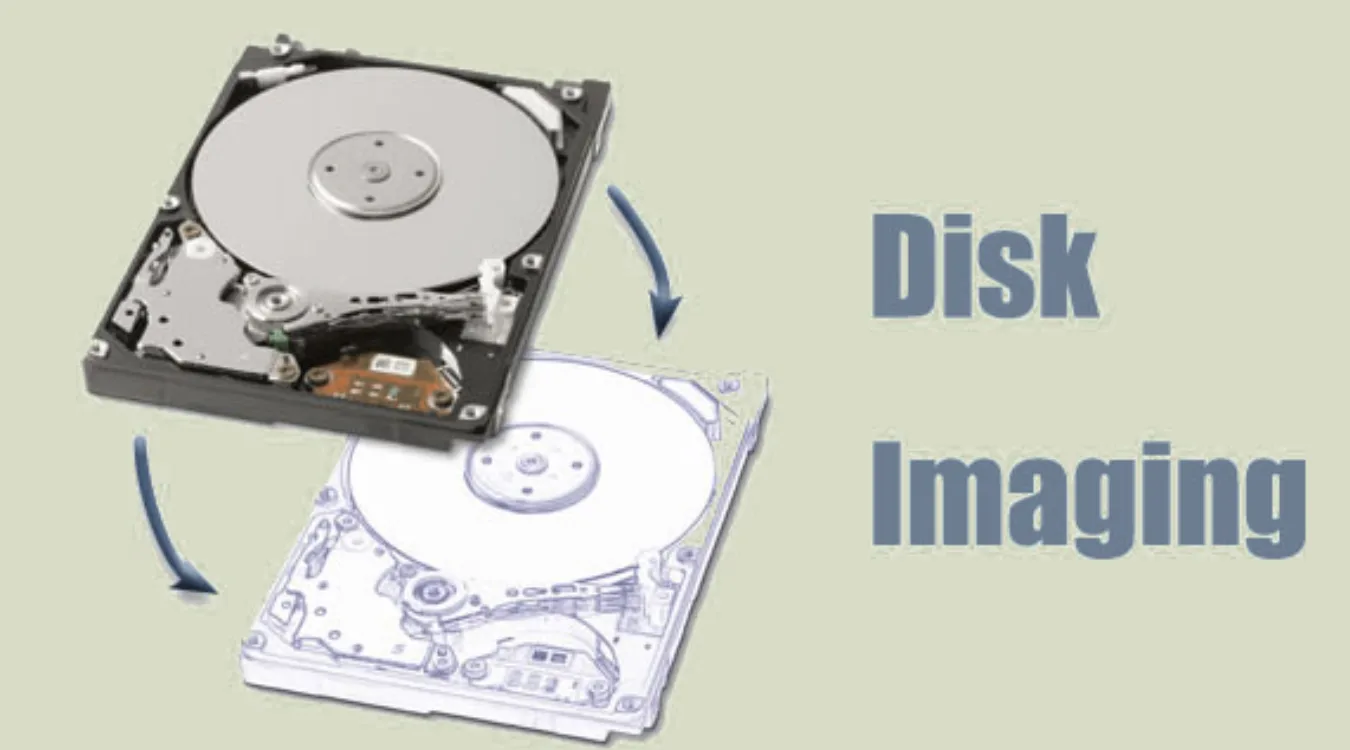

How a Disk Image Represents a Drive
A disk image functions as a sector-by-sector snapshot of a storage device.
It records every addressable block, including boot sectors, partition tables, file system metadata, and unallocated space.
Because the image preserves unallocated sectors, it also preserves remnants of deleted files.
Tools can then scan the image exactly as they scan a physical disk, but without stressing the original device.
Therefore, imaging becomes a core technique in forensics and data recovery.
Disk Imaging Compared to File-Level Copy
A simple file copy only touches files that the file system still lists.
If the directory structure fails or the partition turns RAW, that approach breaks quickly.
Disk imaging avoids this weakness:
It ignores file system state and reads raw sectors instead.
It preserves hidden and system areas that normal tools skip.
It captures evidence of previous partitions and file systems.
Consequently, you keep options open for multiple recovery passes and future tools.
Typical Uses for Data Imaging
You see data imaging in several recurring scenarios:
Data recovery from failing HDDs and SSDs
Digital forensics for legal or incident investigations
System migration from legacy hardware to new storage
Large-scale backup strategies that rely on image-level snapshots
In each case, the team wants an exact representation of the original disk without repeated risky access.
Imaging Workflow for Recovery and Analysis
A structured workflow helps you avoid mistakes while you image a damaged drive.
Preparation and Hardware Setup
First, stabilize the environment:
Use a reliable workstation with stable power.
Connect the suspect drive as a secondary device, not as a boot disk.
Prefer write blockers or read-only adapters during forensic work.
Confirm that the BIOS and OS detect the drive, even if it appears RAW.
Because you only want to read, you should never run repair tools before you capture the image.
Creating the Disk Image
Next, you capture the image:
Choose an imaging tool that supports sector-by-sector copies.
Select the source disk carefully and double-check the target path.
Store the image on a healthy disk with enough free space.
Enable logs and, if available, options for handling bad sectors.
When drives show weak sectors, some tools reduce read speed or retry counts to limit stress.
As a result, you may not capture every byte, but you preserve as much as the hardware allows.
Working From the Image, Not the Original
After imaging, you switch focus:
Mount the image file as a virtual disk or open it directly in analysis tools.
Run file system inspection, carving, and data recovery on the image.
Keep the original drive powered off unless you need a second pass.
Normally, a created disk image can be restored without issues. However, backup image files are usually large, and storing them long-term on a disk that is frequently read and written may lead to image corruption. If the image becomes corrupted, the data inside it may no longer be recoverable. In that case, you can try using data recovery software—such as Magic Data Recovery—to scan the drive where the data was lost and attempt to recover the missing files..
Supports Windows 7/8/10/11 and Windows Server
Data Imaging in Forensics and Compliance
In forensic cases, investigators care about both content and process.
They must show that they preserved evidence, followed procedure, and avoided contamination.
Disk imaging supports these requirements:
It records the state of the drive at a specific time.
It allows hash-based verification to detect later tampering.
It lets multiple analysts work on copies while the original stays sealed.
Organizations that handle sensitive incidents often treat imaging tools, write blockers, and chain-of-custody records as standard kit.
Best Practices for Reliable Data Imaging
A few habits drastically improve the value of each image.
Recommended practices:
Plan capacity so image targets always have space for full copies.
Record metadata: drive serial numbers, ports, timestamps, and tool versions.
Hash images and store checksums separately for verification.
Keep at least one backup of critical images, stored on independent media.
Document decisions about partial images when drives fail mid-process.
Conclusion
Data imaging turns unstable or critical disks into portable, analyzable files.
It separates risk to hardware from the intensive scans and experiments that recovery and forensics require.
When you image first, you gain more chances to recover data, more flexibility during analysis, and a better story for audits and investigations.
But in certain special situations, the backup image may become unrecoverable, and in such cases, you will need to use data recovery software to scan and retrieve the lost data..
